maven 項目模板

maven 使用 archetype(原型) 來創建自定義的項目結構，形成 maven 項目模板。

maven 使用下面的命令來快速創建 java 項目：

mvn archetype:generate

1. 什么是 archetype

archetype 也就是原型，是一個 maven 插件，準確說是一個項目模板，它的任務是根據模板創建一個項目結構。我們將使用 quickstart 原型插件創建一個簡單的 java 應用程序。

2. 使用項目模板

讓我們打開命令控制臺，跳轉到 c:\> mvn 目錄并執行以下 mvn 命令:

c:\mvn> mvn archetype:generate

maven 將開始處理，并要求選擇所需的原型:

[info] scanning for projects...
[info] searching repository for plugin with prefix: 'archetype'.
[info] -------------------------------------------------------------------
[info] building maven default project
[info]task-segment: [archetype:generate] (aggregator-style)
[info] -------------------------------------------------------------------
[info] preparing archetype:generate
...
600: remote -> org.trailsframework:trails-archetype (-)
601: remote -> org.trailsframework:trails-secure-archetype (-)
602: remote -> org.tynamo:tynamo-archetype (-)
603: remote -> org.wicketstuff.scala:wicket-scala-archetype (-)
604: remote -> org.wicketstuff.scala:wicketstuff-scala-archetype
basic setup for a project that combines scala and wicket,
depending on the wicket-scala project.
includes an example specs test.)
605: remote -> org.wikbook:wikbook.archetype (-)
606: remote -> org.xaloon.archetype:xaloon-archetype-wicket-jpa-glassfish (-)
607: remote -> org.xaloon.archetype:xaloon-archetype-wicket-jpa-spring (-)
608: remote -> org.xwiki.commons:xwiki-commons-component-archetype
(make it easy to create a maven project for creating xwiki components.)
609: remote -> org.xwiki.rendering:xwiki-rendering-archetype-macro
(make it easy to create a maven project for creating xwiki rendering macros.)
610: remote -> org.zkoss:zk-archetype-component (the zk component archetype)
611: remote -> org.zkoss:zk-archetype-webapp (the zk wepapp archetype)
612: remote -> ru.circumflex:circumflex-archetype (-)
613: remote -> se.vgregion.javg.maven.archetypes:javg-minimal-archetype (-)
614: remote -> sk.seges.sesam:sesam-annotation-archetype (-)
choose a number or apply filter
(format: [groupid:]artifactid, case sensitive contains): 203:

按下 enter 選擇默認選項 (203:maven-archetype-quickstart)。

3. maven 將詢問原型的版本

choose org.apache.maven.archetypes:maven-archetype-quickstart version:
1: 1.0-alpha-1
2: 1.0-alpha-2
3: 1.0-alpha-3
4: 1.0-alpha-4
5: 1.0
6: 1.1
choose a number: 6:

按下 enter 選擇默認選項 (6:maven-archetype-quickstart:1.1)

maven 將詢問項目細節。按要求輸入項目細節。如果要使用默認值則直接按 enter 鍵。你也可以輸入自己的值。

define value for property 'groupid': : com.companyname.insurance
define value for property 'artifactid': : health
define value for property 'version': 1.0-snapshot
define value for property 'package': com.companyname.insurance

maven 將要求確認項目細節，按 enter 或按 y

confirm properties configuration:
groupid: com.companyname.insurance
artifactid: health
version: 1.0-snapshot
package: com.companyname.insurance
y:

現在 maven 將開始創建項目結構，顯示如下:

[info] -----------------------------------------------------------------------
[info] using following parameters for creating project
from old (1.x) archetype: maven-archetype-quickstart:1.1
[info] -----------------------------------------------------------------------
[info] parameter: groupid, value: com.companyname.insurance
[info] parameter: packagename, value: com.companyname.insurance
[info] parameter: package, value: com.companyname.insurance
[info] parameter: artifactid, value: health
[info] parameter: basedir, value: c:\mvn
[info] parameter: version, value: 1.0-snapshot
[info] project created from old (1.x) archetype in dir: c:\mvn\health
[info] -----------------------------------------------------------------------
[info] build successful
[info] -----------------------------------------------------------------------
[info] total time: 4 minutes 12 seconds
[info] finished at: fri jul 13 11:10:12 ist 2012
[info] final memory: 20m/90m
[info] -----------------------------------------------------------------------

4. 創建的項目

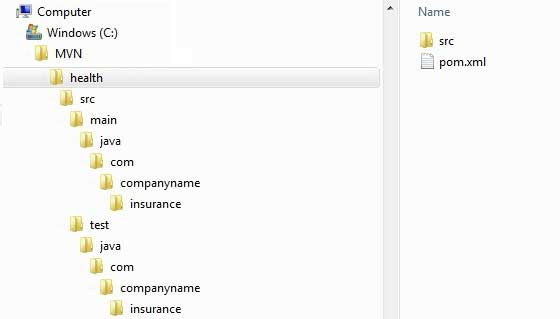

現在轉到 c:\ > mvn 目錄。你會看到一個名為 health 的 java 應用程序項目，就像在項目創建的時候建立的 artifactid 名稱一樣。 maven 將創建一個有標準目錄布局的項目，如下所示:

5. 創建 pom.xml

maven 為項目自動生成一個 pom.xml文件，如下所示:

<project xmlns="http://maven.apache.org/pom/4.0.0"
  xmlns:xsi="http://www.w3.org/2001/xmlschema-instance"
  xsi:schemalocation="http://maven.apache.org/pom/4.0.0
  http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelversion>4.0.0</modelversion>
  <groupid>com.companyname.insurance</groupid>
  <artifactid>health</artifactid>
  <version>1.0-snapshot</version>
  <packaging>jar</packaging>
  <name>health</name>
  <url>http://maven.apache.org</url>
  <properties>
     <project.build.sourceencoding>utf-8</project.build.sourceencoding>
  </properties>
  <dependencies>
     <dependency>
     <groupid>junit</groupid>
        <artifactid>junit</artifactid>
        <version>3.8.1</version>
        <scope>test</scope>
     </dependency>
  </dependencies>
</project>

6. app.java

maven 會自動生成一個測試的 java 文件 app.java。

路徑：c:\mvn\consumerbanking\src\main\java\com\companyname\bank

package com.companyname.insurance;

/**
* hello world!
*
*/
public class app
{
    public static void main( string[] args )
    {
        system.out.println( "hello world!" );
    }
}

7. apptest.java

maven 會自動生成一個 java 文件 apptest.java。

路徑為： c:\mvn\consumerbanking\src\test\java\com\companyname\bank

package com.companyname.insurance;

import junit.framework.test;
import junit.framework.testcase;
import junit.framework.testsuite;

/**
* unit test for simple app.
*/
public class apptest
   extends testcase
{
   /**
   * create the test case
   *
   * @param testname name of the test case
   */
  public apptest( string testname )
  {
      super( testname );
  }

  /**
  * @return the suite of tests being tested
  */
  public static test suite()
  {
      return new testsuite( apptest.class );
  }

  /**
  * rigourous test :-)
  */
  public void testapp()
  {
      asserttrue( true );
  }
}

就這樣。現在你可以看到 maven 的強大之處。你可以用 maven 簡單的命令創建任何類型的項目，并且可以啟動您的開發。
